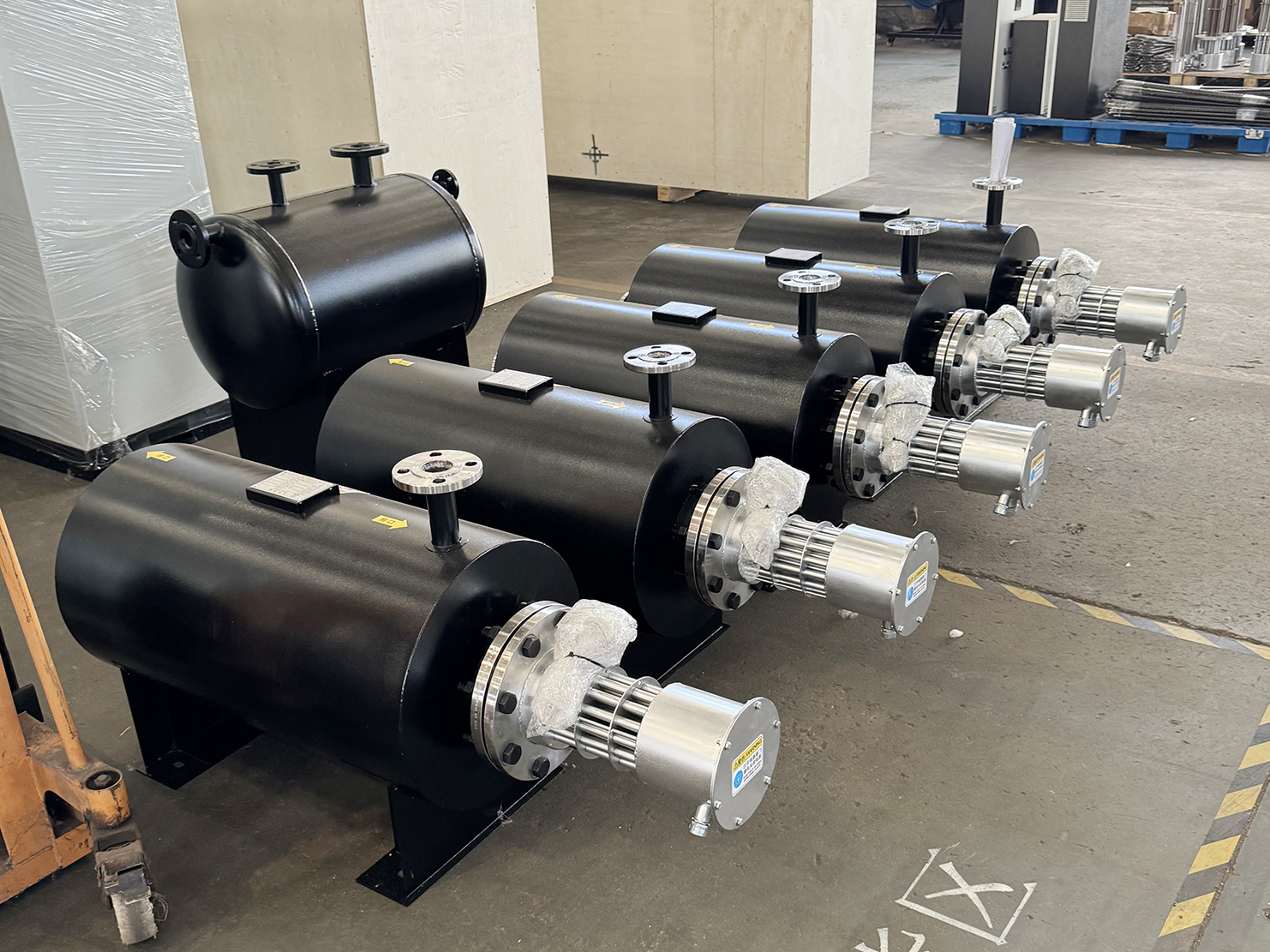

What Are the Main Components of an Industrial Inline Pipe Heater?

Many customers ask us: What exactly is an industrial pipe heater made of? Understanding its core components helps engineers and buyers choose the right heating solution for their process.

In this article, we’ll break down the five key parts of a modern industrial pipe heater and explain how they work together to deliver efficient, precise, and reliable heating.

1. Heating Elements – The Core Heat Source

The heart of any pipe heater is the electric heating element.

Most industrial pipe heaters use high-quality alloy-sheathed heating tubes designed for continuous operation in demanding environments. These heating elements convert electrical energy into thermal energy with efficiencies often exceeding 90%, ensuring rapid and cost-effective heating.

Key benefits include:

 • Fast heat-up performance

 • High thermal efficiency

 • Long service life

 • Excellent temperature stability

2. Pressure-Resistant Housing

For applications involving pressurized gases or liquids, the heater is equipped with a high-strength pressure vessel housing.

The housing is designed to:

 • Withstand high operating pressures

 • Resist elevated temperatures

 • Prevent medium leakage

 • Ensure long-term operational safety

The housing material and wall thickness are selected according to process requirements, pressure ratings, and industry standards.

3. Flow-Guiding and Heat Transfer Components

Many industrial inline heaters incorporate internal flow-directing baffles or guide plates.

These components help:

 • Distribute the medium evenly

 • Eliminate flow dead zones

 • Improve heat transfer efficiency

 • Protect heating elements from localized overheating

By forcing the medium to flow uniformly around the heating elements, the system maximizes thermal energy utilization and ensures consistent outlet temperatures.

4. Installation and Connection Accessories

To simplify installation, pipe heaters are supplied with standardized connection interfaces and mounting accessories.

Typical configurations include:

 • Flanged inlet and outlet connections

 • Mounting brackets and supports

 • Electrical terminal boxes

 • Cable entry systems

 • Grounding connections

For example, customized projects may utilize flanges such as:

 • DN450 PN16 outlet flange

 • DN250 PN16 inlet flange

 • HG/T20592-2009 standard connections

These standardized interfaces allow quick integration with existing piping systems while accommodating various pipe sizes and process requirements.

5. Intelligent Temperature Control and Safety Protection

A modern industrial pipe heater is more than just a heating device—it is a complete thermal management system.

Advanced control systems provide:

Precise Temperature Control

 • Adjustable temperature setpoints

 • Real-time process monitoring

 • Automatic power regulation

 • Stable outlet temperature control

Multiple Safety Protections

 • Over-temperature protection

 • Leakage protection

 • Phase-loss protection

 • Overcurrent protection

 • Low-flow protection

 • Emergency shutdown functions

These features significantly improve system reliability while protecting both equipment and personnel.

Why These Components Matter

The combination of efficient heating elements, robust pressure-resistant construction, optimized flow design, standardized connections, and intelligent control systems enables industrial pipe heaters to deliver:

✅ Fast heating performance

✅ Precise temperature control

✅ High energy efficiency

✅ Safe and reliable operation

✅ Long service life

Applications of Industrial Pipe Heaters

Industrial pipe heaters are widely used in:

 • Chemical processing

 • Petrochemical plants

 • Oil & gas facilities

 • Food and beverage production

 • Pharmaceutical manufacturing

 • Water treatment systems

 • Industrial air heating systems

 • Energy and power generation industries

Whether heating air, nitrogen, natural gas, thermal oil, water, or other process media, a properly designed pipe heater can provide a dependable and energy-efficient solution.

Looking for a Custom Pipe Heater Solution?

At HOTBOX, we design and manufacture custom industrial pipe heaters tailored to your process requirements, including operating temperature, pressure rating, flow rate, medium type, and installation conditions.

Contact Hotbox engineering team today to discuss your application and receive a customized heating solution.
