Material: Burnished Die Cast Aluminum/Stainless Stell
Environmental Rating: IP65
Probe Entry: M12,M24,NPT1/2",NPT3/4",G1/2",G3/4"...
Wire Entry: M20,NPT1/2",NPT3/4",G1/2",G3/4"...
Introduction
Thermocouple and RTD heads are essential accessories for temperature sensors in industrial settings. Manufactured from aluminum,stainless steel,bakelite and cast iron,they also include miniature and explosion-proof types to fit different probe sizes. Sturdy and reliable, these protection housings effectively shield sensors, secure wiring connections, and deliver stable performance for various industrial temperature measurement scenarios.

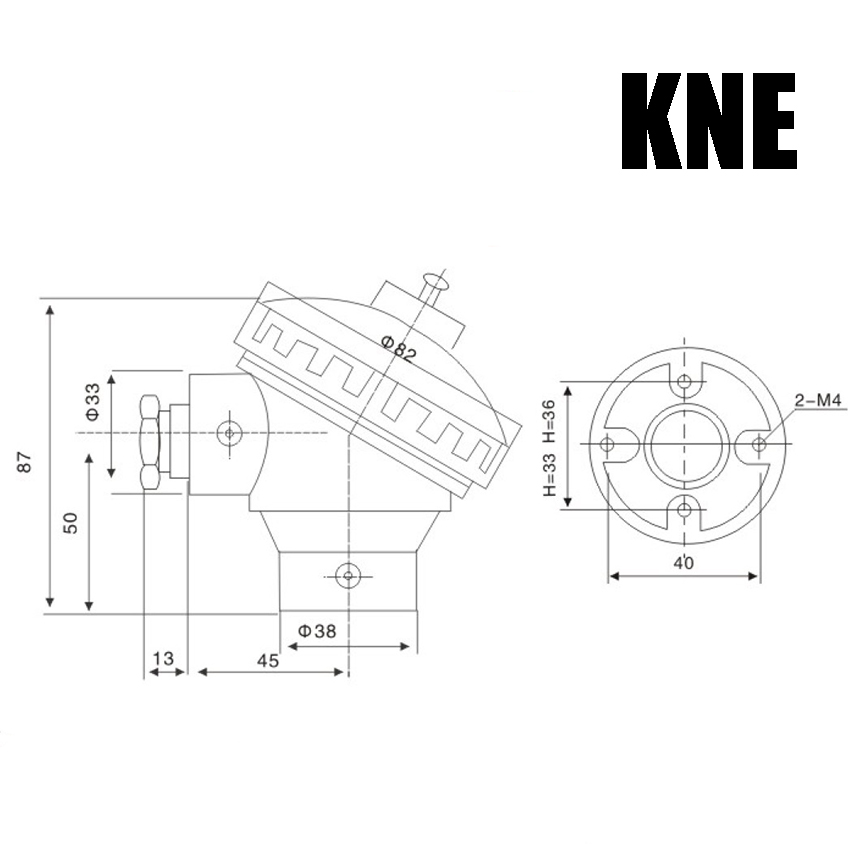

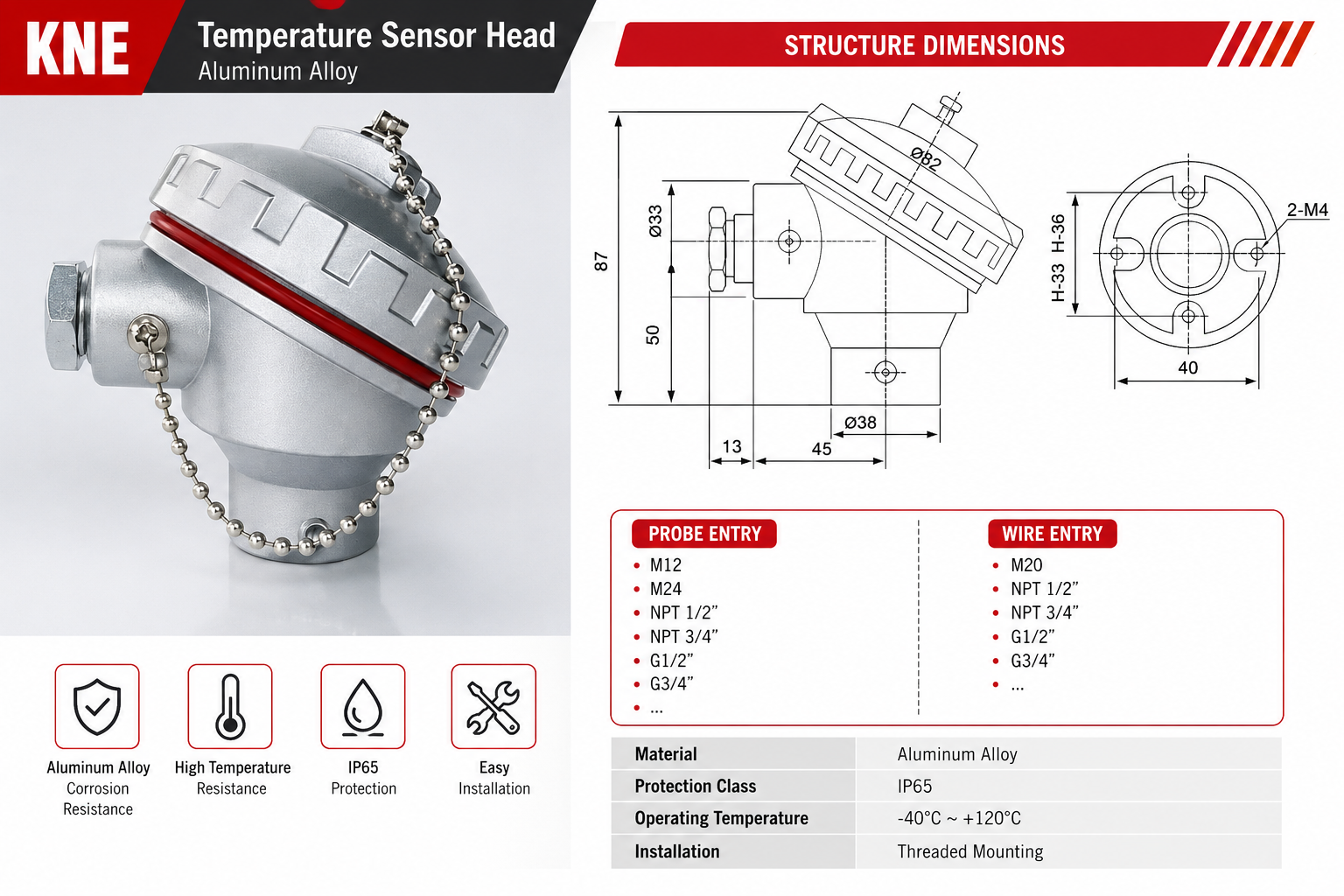

Temperature Sensor KNE Drawing:
Descriptions:
|
Material |
Aluminum(ADC-12) |
|
Type |
KNE |
|
Protection Probe Entry |
M12,M24,NPT1/2",NPT3/4",G1/2",G3/4"... |
|
Extension Wire Entry |
M20,NPT1/2",NPT3/4",G1/2",G3/4"... |
|
Screw Distance |
33mm,36mm,40mm |
|
Material of Terminal Block |
Ceramic or Bakelite |
|
Form of Terminal Block |
2poles,3poles,4poles,6poles |
|
Color Available |
Slivery |
|
Protection Level |
IP65 of IEC529 Enclosure Protection Class |
|
Place of Origin |
China(Mainland) |
|
Packing |
100pcs/ctn |
|
MOQ |
50pcs |
|
Trade Term |
FOB,EXW,CIF,CFR |
|
Payment Term |
TT,West Union,Paypal |
Features & Applications
Attractive apperanace with high-gloss paint finish.
Large internal cavity for easy wiring.
Protection grade complies with IEC 529 (IP65 enclosure protection).
Compatible with spring-loaded mounting plates.
Supports foreign terminal boards and transmitters for international compatibility.
Suitable for assembling various thermocouple,RTDs,and those fitted with tempearture transmitters.

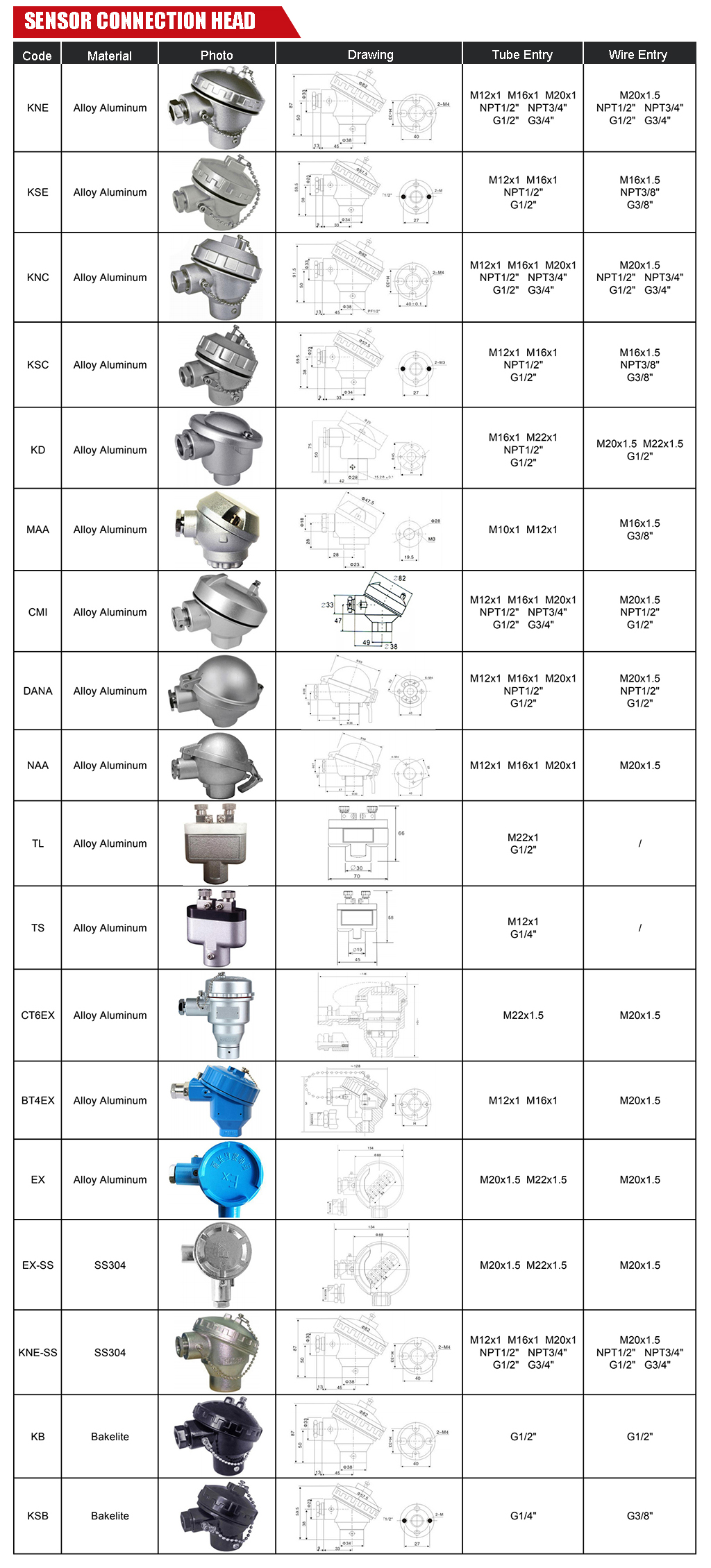

More Heads:
We specialize in designing products to your specific requirements. Let us help you find the right solution.
