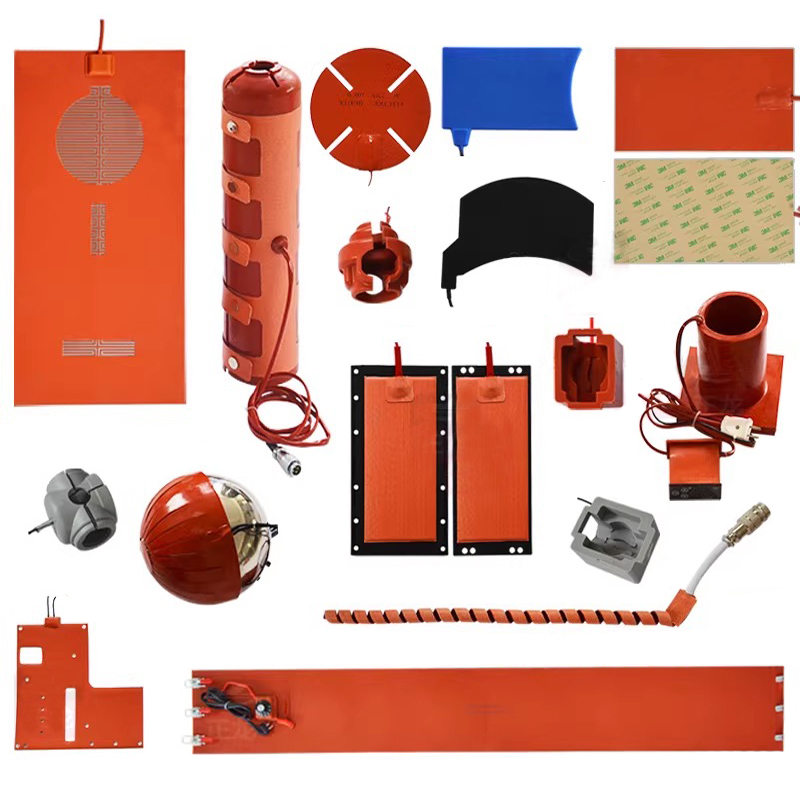

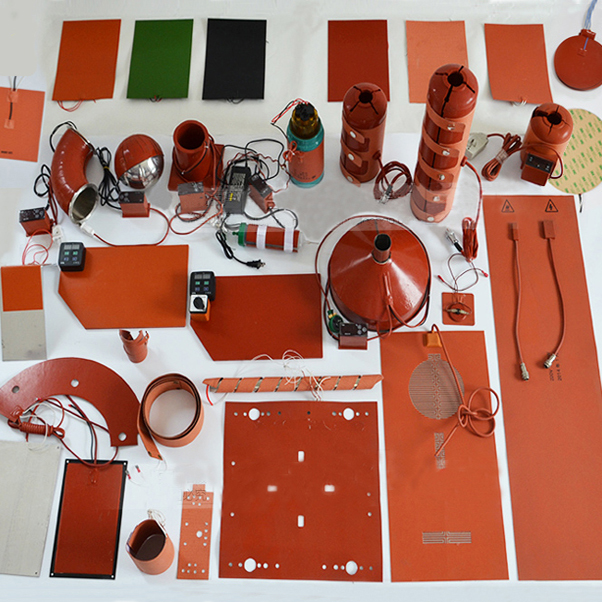

Custom Silicone Rubber Heaters

What Is a Silicone Rubber Heater?

A silicone rubber heater is a flexible electric heating element made by laminating resistance wire or etched foil between layers of fiberglass-reinforced silicone rubber. It provides efficient, uniform surface heating while remaining lightweight, durable, and easy to install.

Unlike traditional metal heaters, silicone rubber heaters can conform to curved, irregular, or complex surfaces, making them ideal for industrial equipment,battery systems, medical devices, food machinery, laboratory instruments, and many other applications.

Why Choose Silicone Rubber Heaters?

Excellent Flexibility

Can be wrapped around:

• Pipes

• Tanks

• Cylinders

• Drums

• Irregular Surfaces

Unlike rigid heaters, silicone heaters maintain close surface contact for better heat transfer.

Uniform Heating

Embedded resistance wire or etched foil technology ensures even heat distribution across the entire heating surface.

Benefits:

• No hot spots

• Stable temperature

• Improved product quality

• Longer service life

Fast Heating Response

The heater transfers heat directly to the object, minimizing energy loss and reducing warm-up time.

Ideal for:

• Precision equipment

• Industrial automation

• Laboratory instruments

Moisture & Chemical Resistant

Silicone rubber offers excellent resistance to:

• Water

• Humidity

• UV

• Ozone

• Chemicals

• Aging

Suitable for harsh industrial environments.

Long Service Life

Designed for continuous operation with excellent thermal stability.

Typical service life:

20,000+ hours under proper operating conditions.

Product Structure

A silicone rubber heater typically consists of:

• Silicone Rubber Insulation

• Fiberglass Reinforcement

• Resistance Wire / Etched Foil Heating Element

• High Temperature Lead Wire

• Optional Thermostat

• Optional Temperature Sensor

• Optional Adhesive Backing

Technical Specifications

Optional Features

Customers can customize:

• 3M Adhesive Backing

• Digital Temperature Sensor

• Thermostat

• Thermal Fuse

• Waterproof Design

• Cut-outs

• Mounting Holes

• Velcro Fastening

• Springs

• Magnets

OEM Manufacturing Available.

Applications

Battery Heating

Used for:

• Lithium Batteries

• Energy Storage Systems

• EV Battery Packs

• Outdoor Battery Cabinets

Benefits:

• Low-temperature protection

• Stable charging

• Longer battery life

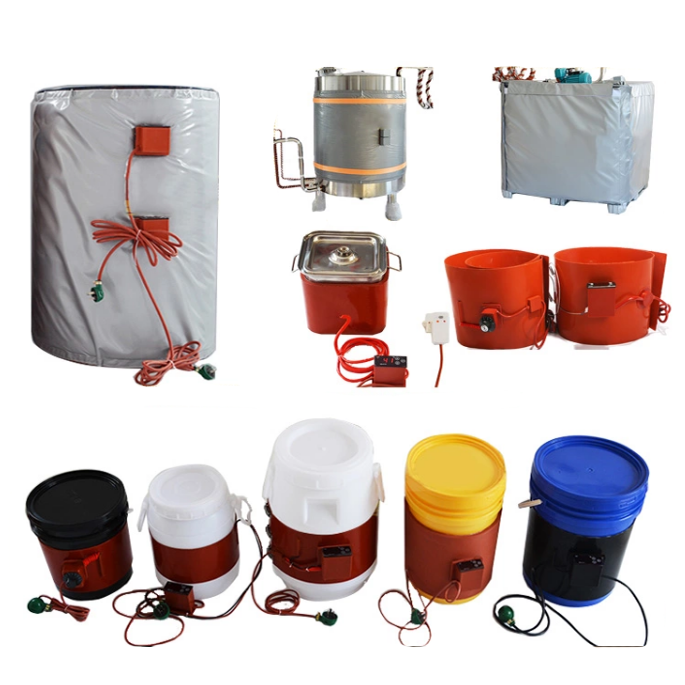

Industrial Tank Heating

Suitable for:

• Water Tanks

• Oil Tanks

• Chemical Containers

• Mixing Tanks

Provides uniform surface heating without damaging the container.

Pipe Freeze Protection

Ideal for:

• Outdoor Pipelines

• Water Pipes

• Chemical Pipelines

Prevents freezing during winter.

Medical Equipment

Commonly used in:

• Blood Analyzers

• Incubators

• Medical Imaging Equipment

• Laboratory Instruments

Provides precise temperature control.

Food Processing

Applications include:

• Chocolate Melting

• Food Warmers

• Packaging Equipment

• Beverage Machines

3D Printing & Electronics

Widely used for:

• Heated Beds

• Semiconductor Equipment

• LCD Manufacturing

• Automation Equipment

Silicone Heater Types

Advantages Over Other Heating Technologies

Installation Methods

Customers can choose:

• PSA  Adhesive

• Springs

• Velcro

• Hooks

• Magnets

• Mechanical Clamping

Suitable for both temporary and permanent installations.

Material Options

Quality Inspection

Every heater undergoes:

• Insulation Resistance Test

• Hi-pot Test

• Power Test

• Dimension Inspection

• Appearance Inspection

100% Factory Tested Before Shipment.

Packaging

• PE Bag

• Bubble Protection

• Carton

• Wooden Case

Worldwide Shipping Available.

Frequently Asked Questions

Can silicone rubber heaters be cut?

No. They should be manufactured to the required dimensions and should not be cut after production.

Are silicone heaters waterproof?

Standard models are moisture resistant. Fully waterproof designs are available upon request.

Can I attach the heater directly to metal?

Yes. We recommend using 3M adhesive backing or mechanical fastening to ensure full contact and optimal heat transfer.

Can you manufacture custom heaters?

Absolutely. We can produce custom heaters based on your drawing or specifications, including size, shape, voltage, wattage, sensor type, and mounting method.

What information is needed for a quotation?

To recommend the most suitable heater, please provide:

• Dimensions (Length × Width)

• Voltage

• Power (W)

• Maximum operating temperature

• Heating area

• Mounting method

• Adhesive backing (Yes/No)

• Thermostat or sensor requirements

• Application details
